A2 Server Racks

The frame is built with roll-formed double pipe profiles and angle joint welding with economic connectors, which is sturdy, reliable and economical.

Single vented front door and split rear doors.


A2 Server Racks
A1系列服务器机柜
Convenient Installation
Convenient Installation

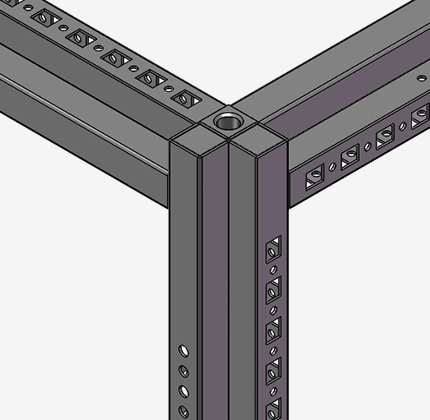

The patent frame is built with roll-formed double pipe profiles and special 3 tees joints. All parts can be installed and uninstalled quickly which is convenient and cost effective.

Safe & Reliable
Safe & Reliable

The sturdy and welded construction supports static loading up to 1500kg. The seismic intensity test of Lv.8 and Lv.9 in China, comply with YD 5083-2005 standard.

Flexible & Versatile
Flexible & Versatile

Inside structure can customize to 19” profile or installation plate according to customer needs. The profile with 4 installation surfaces and double layer structure can extend 10% space to meet data center, industrial control cabinet & different projects.


A2 Server Racks
A2 Server Racks
A2 Server Racks
A2 Server Racks
https://yeefunet.oss-cn-shenzhen.aliyuncs.com/img/20200716/614e365909fa7d6dd5168f23b027f88f1594888152.jpg?OSSAccessKeyId=LTAI4G1ep8jFHXuF9UFVTv6B&Expires=1733348799&Signature=i3JqUEmNwSEiK5CQdWiKumt20EY%3D
Overview

1. Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, YD 5083-2005, GB/T3047.2-92 standards., metric system and ETSI standards.

2. The frame (patent) is formed by roll-formed double pipe profiles and angle joint welded, solid structure and static loading up to 1500kg.

3. Elegant single hexagonal mesh flat front door and split hexagonal mesh rear doors, ventilation area 70%. We also can customize high density mesh doors according to customer requirement.

4. Left and right side doors are quick assembled to facilitate easy work accessibility.

5. The front door can be opened from left or right hand sides.

6. The top is equipped with top cable entry cover and fan unit.

7. Mounting profile is front and back adjustable (25mm interval). Standard servers can be installed.

8. Comfortable handle with safe lock and 3-point handle lock system increase the security of the cabinet. The front and rear doors can be opened 130 degree.

9. We can customize various specifications and inside structure according to customer requirements.

10. Surface treatment: degreasing, ceramics, cleaning, electrostatic spraying;

11. Optional casters and adjustable leveling feet can be installed at the bottom of the cabinet. Cabinet is convenient to move and fix on ground as needed.

12.  Optional accessories: castor tray, bottom plate, assistant mounting profile, cable tray, etc.

Standard accessories

A2 Server Racks

Specifications

A2 Server Racks

Customizable size

Width: 600 / 800 MM

Depth: 600 / 800 / 900 / 1000 / 1100 / 1200mm

height: 22U/27U/32U/37U/42U/47U


Features

Material:   SPCC cold rolled steel, double pipes profile,  frame thickness 1.5mm ,  profile thickness 2.0mm , others 1.2-1.5mm.

Warranty:   2 years

Static loading: 1500kg


Color
RAL 9004 (black)
RAL 7044 (grey)
RAL 7035 (light white)
