S2: Assembled Design S5: Flat Pack Design
Frame (patent) is built with double pipe profiles and appropriative 3 tees joints, strong and reliable
Front and rear doors are flat mesh panels. Single door in the front and split doors at the back sides.
Frame (patent) is built with double pipe profiles and 3 tees joints. All parts can be installed and uninstalled quickly which is convenient and cost effective .
The sturdy and welded construction supports static loading exceeds 1500kg.
Seismic resistance passed the seismic intensity test of Lv.8 and Lv.9 in China, which conforms to YD 5083-2005 standard
Inside structure can customize to 19-inch profile or installation plate according to customer’s request. The profile with 4 installation surfaces and double layer structure can extend 10% space to meet data center, industrial control cabinet & different projects.
1. Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, YD 5083-2005, GB/T3047.2-92 standards, metric system and ETSI standard.
2. Patent frame is built with double pipe profiles and appropriative 3 tees joints, solid structure and static loading up to 1500kgs.
3. Elegant single hexagonal mesh flat front door and split hexagonal mesh rear doors, ventilation area 70%. We also can customize high density mesh doors according to customer requirement.
4. Left and right side doors are quick assembled to facilitate easy work accessibility .
5. The front door can be opened from left or right hand sides.
6. The top is equipped with top cable entry cover and fan unit.
7. Mounting profile is front and back adjustable (25mm interval) and standard servers could be installed.
8. Comfortable handle with safe lock and 3-point handle lock system increase the security of the cabinet. The front and rear door can be opened 130 degree.
9. We can customize various specifications and inside structure according to customer requirement.
10. Surface treatment: degreasing, ceramics, cleaning, electrostatic spraying;
11. Optional casters or leveling feet can be installed at the bottom of the cabinet. It is convenient to move with casters when needed.
12. Optional accessories: castor tray, bottom plate, assistant mounting profile, cable tray, etc.

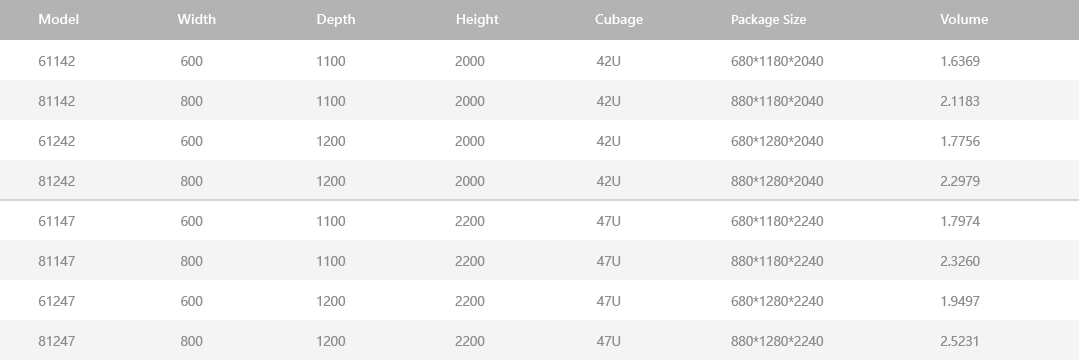

Width: 600 / 800 mm
Depth: 600 / 800 / 900 / 1000 / 1100 / 1200mm
Height: 22U/27U/32U/37U/42U/47U
Material: SPCC cold rolled steel, double pipe profile, frame thickness 1.5mm, profile thickness 2.0mm, others 1.2~1.5mm.
Warranty: 2 years
Static loading: 1500kgs
