The box body is welded by steel plates after being bent for many times. The overall structure is strong, the workmanship is exquisite, and it has multi-function and variable characteristics;

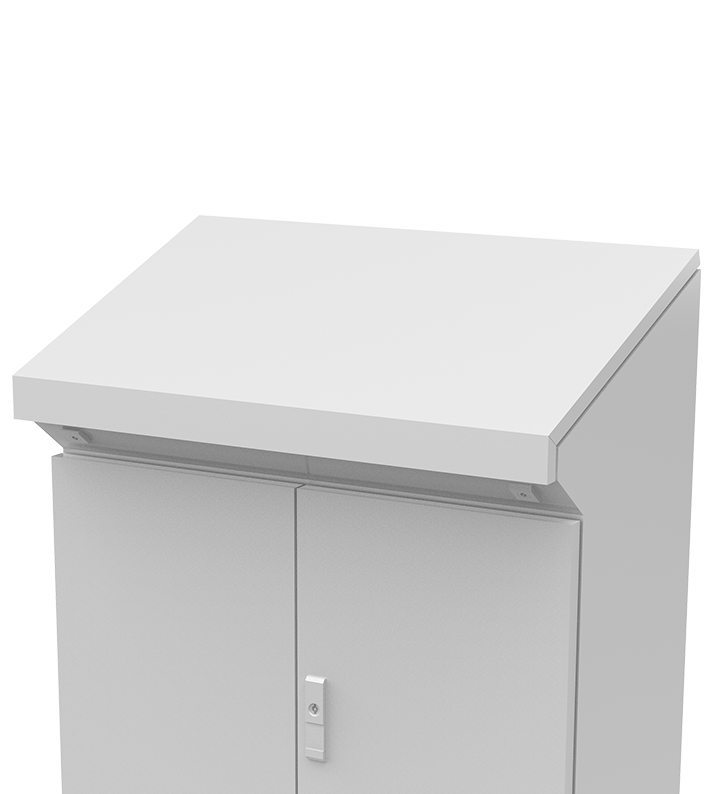

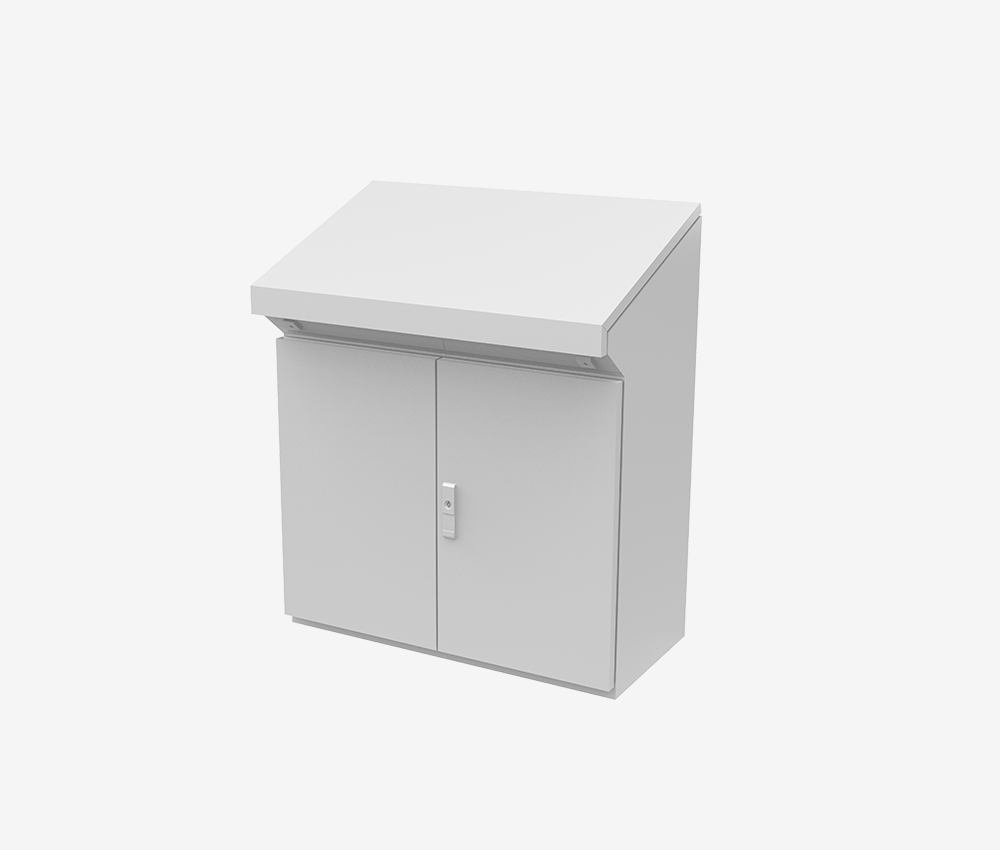

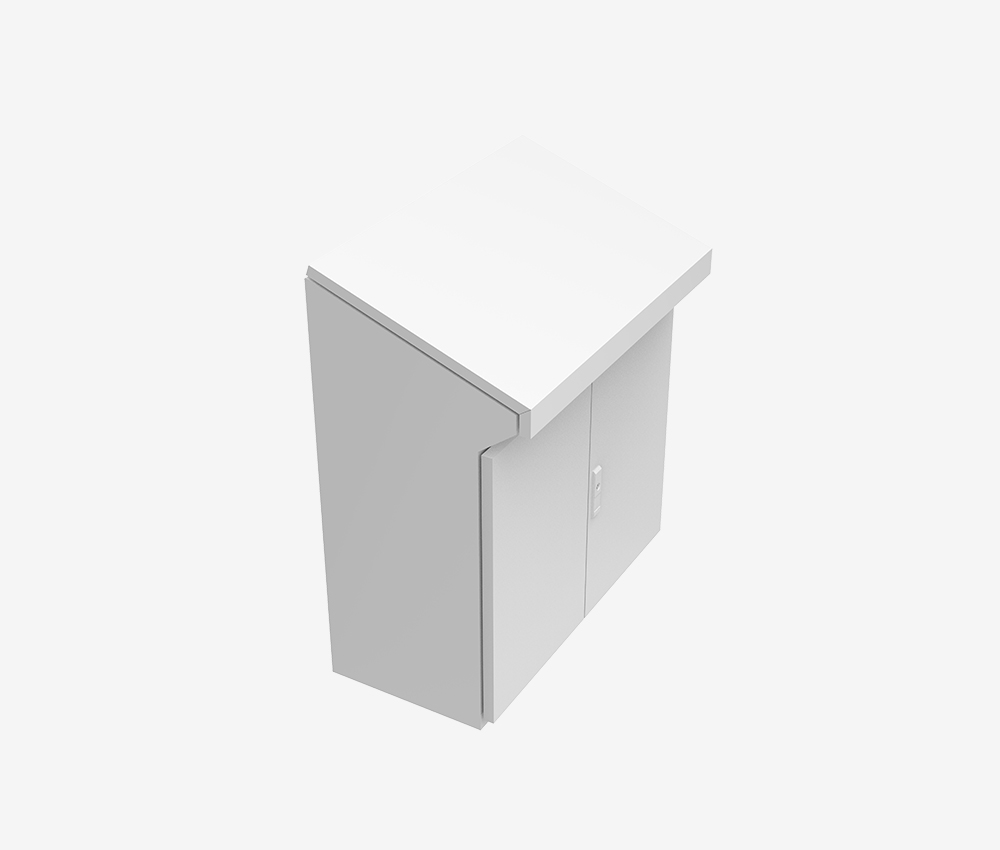

The console is composed of the box body ,front door, table cover and bottom cover plate. It is simple and efficient to install. All components can be easily assembled and dismantled without professional training. Reduce the cost, easy to install, enjoy better cabinet experience.
The cabinet body adopts welding structure. The cabinet body is solid and bears large load. It meets the requirements of equipment.
The interior of the cabinet can be customized to installation panel or 19 inches according to customer requirements. It can meet the needs of different projects and purposes such as data center and industrial control.
1. The box body is welded by steel plates after being bent for many times. The overall structure is strong, the workmanship is exquisite, and it has multi-function and variable characteristics;

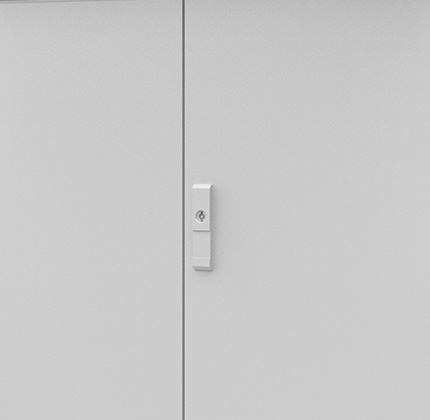

2. Front and rear doors can be opened ,Installation plate is painted with galvanized or powder painting.The box door had been welded with installation strip , not only increasing the strength of the door, but also can be used to install cable and electrical components.;
3. Groove box side, polyurethane foaming sealant, design can protect the box body well., protection grade IP54;
4. The movable cover cover at the bottom of the box body for the wire layout, and the piano-type box cover is equipped with a special limit bracket, which is convenient to secure the box cover when it is opened;
5. Can be customized according to customer requirements of various specifications and sizes, and hole change;
6. Surface treatment: degreasing, ceramics, cleaning, electrostatic spraying.
Width: 600~1200mm
Depth: 400~480mm
Height: 960mm
Material:SPCC cold roll steel,metal bending welding box,the thickness of box is1.5mm，the thickness of installation panel is 2.5mm.
Box door and cover 2mm ,others 1.2-1.5mm
Warranty:2 years
IP degree:IP55
