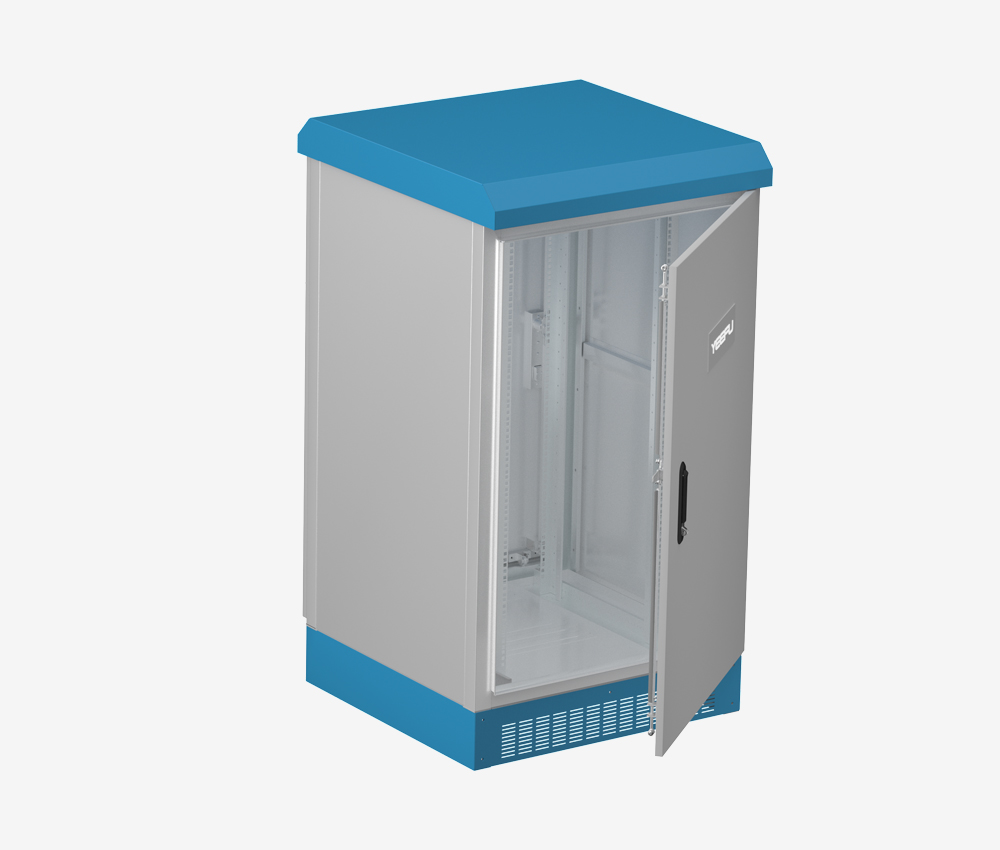

O1 IP54 Outdoor Electrical Enclosure

O1:Flat Pack Design

The box body is welded by steel plates after being bent for many times. The overall structure is strong, the workmanship is exquisite, and it has multi-function and variable characteristics;

O1 IP54 Outdoor Electrical Enclosure
O1 IP54 Outdoor Electrical Enclosure
Convenient Installation
Convenient Installation

The console is composed of the box body ,front door, table cover and bottom cover plate. It is simple and efficient to install. All components can be easily  assembled and dismantled without professional training. Reduce the cost, easy to install, enjoy better cabinet experience.


Safe and Reliable
Safe and Reliable

The cabinet body adopts welding structure. The cabinet body is solid and bears large load. It meets the requirements of equipment.

Flexible&aVersatile
Flexible&aVersatile

The interior of the cabinet can be customized to installation panel or 19 inches according to customer requirements. It can meet the needs of different projects and purposes such as data center and industrial control.

O1 IP54 Outdoor Electrical Enclosure
O1 IP54 Outdoor Electrical Enclosure
O1 IP54 Outdoor Electrical Enclosure
https://yeefunet.oss-cn-shenzhen.aliyuncs.com/img/20211114/6c4fc4c093ded8a4a22b4f5cb619568f1636834629.jpg?OSSAccessKeyId=LTAI4G1ep8jFHXuF9UFVTv6B&Expires=1728344378&Signature=vPQFdmw5gylx5khO%2F1bVNeaLED0%3D
Overview

1. The box body is welded by steel plates after being bent for many times. The overall structure is strong, the workmanship is exquisite, and it has multi-function and variable characteristics;

2. Front and rear doors can be opened ,Installation plate is painted with galvanized or powder painting.The box door had been welded with installation strip , not only increasing the strength of the door, but also can be used to install cable and electrical components.;

3. Groove box side, polyurethane foaming sealant, design can protect the box body well., protection grade IP54;

4. The movable cover cover at the bottom of the box body for the wire layout, and the piano-type box cover is equipped with a special limit bracket, which is convenient to secure the box cover when it is opened;

5. Can be customized according to customer requirements of various specifications and sizes, and hole change;

6. Surface treatment: degreasing, ceramics, cleaning, electrostatic spraying.

Standard accessories

O1 IP54 Outdoor Electrical Enclosure

Specifications

O1 IP54 Outdoor Electrical Enclosure

Customizable size

Width: 800mm

Depth: 800~1000mm

Height: 1454~1988mm

Features

Material:SPCC cold roll steel,metal bending welding box,the thickness of box is1.5mm,the thickness of installation panel is 2.5mm.

Box door and cover 2mm ,others 1.2-1.5mm

Warranty:2 years

IP degree:IP55


Color
RAL 7044 (grey)
